Convergent-type Protocol Converter

Overview

      GTT MSAP 2000 63E1 convergent-type protocol converter adopt SDH/EOP technique kernel design, remote end can access low cost Ethernet protocol converter, optical transceiver, FX optical modem etc terminal equipment.

      GTT MSAP 2000 63E1 convergent-type protocol converter platform has 2 STM-1 uplink optical interfaces, possess totally synchronous timing function, powerful nonblocking cross connection matrix, and serve for telecom, traffic, energy, public security, troop etc.

      GTT MSAP 2000 63E1 convergent-type protocol converter platform use STM-1 optical interface to replace the E1 electric interface of numerous traditional SDH/PDH equipment and 1000M Ethernet electric interface, or optical interface replace the Ethernet electric interface of original optical transceiver, protocol converter, solve the problems of more fault points, high maintenance cost, can not unified network management by excessive of E1 cable or five-type cable, through the conversion of Ethernet service to VC12 and unified dispatch, create the condition for flexible service configuration and improve the efficiency of open service. Owing to realize the super-integration of equipment and ports, reduce the machine room space cost of local end PDH, converter, optical transceiver etc equipment, and support unified network management platform at the meantime.

GTT MSAP 2000 63E1 convergent-type protocol converter consists of local equipment, remote equipment and element management system.



Main feature

  ★  Provide 2 STM-1 uplink optical interface, realize the seamless connection of access network and LAN.

  ★  Provide 1 10/100/1000M Ethernet electric interface and 1 1000M Ethernet optical interface

  ★  Provide 48 remote equipment access maximum

  ★  Remote access equipment can be GTT 1-16E1 10/100M Ethernet converter, 1-16E1 FX optical modem and optical transceiver

  ★  Remote equipment single E1、4E1、8E1、16E1 can arbitrarily configuration; convenient for upgrade of bandwidth

  ★  Complete clock function, provide clock trace and holding facility, clock source can select fold line clock, external clock and free oscillation clock

  ★  Provide Ethernet and QX network management interface, the network management can provide the function of configuration, alarm, performance, maintenance and security for the equipment.

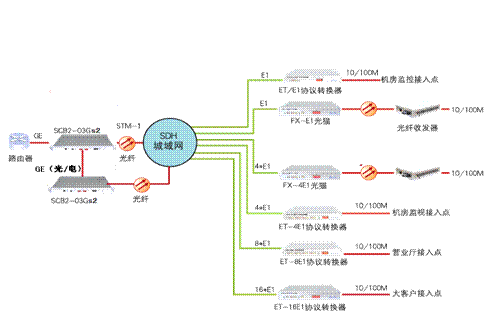

Networking scheme

  Convergent-type protocol converter apply in group client access
